DOUBLE STAIRS
Code: FSW23000
The stair is a very common everyday obstacle. Maintaining the ability to safely overcome any stairs is very important for elderly people to safely move around in urban environments. The stairs are available in two different versions: normal stairs or steep stairs. This allows for progression in exercise that can fit everyone – for example going from the normal stairs with hand support to the steep stairs without support. The stairs can also be used for simple effective exercises like step-ups, lunges and even jumping.
Technical information

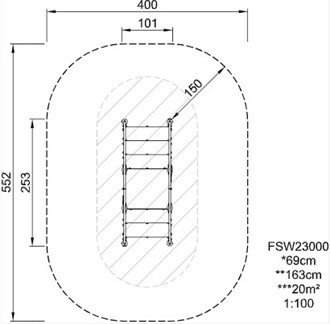

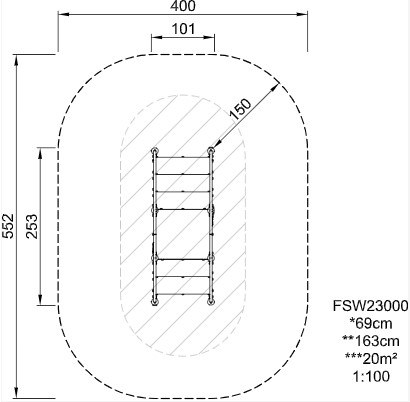

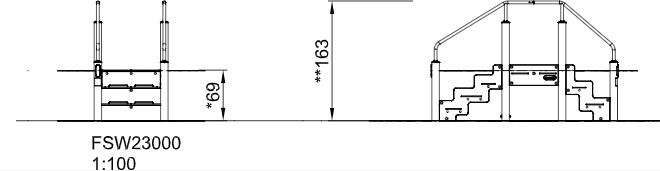

Dimensions LxWxH 101 x 253 x 163cm
Age Group 13+
Capacity 2 adults
Max. fall height 69cm
Safety surfacing area 20m²
All KOMPAN fitness products are designed according to the ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed as a static test by adding dynamic factors as well as safety factors to the specified load of 78 kg per user. A product intended for 1 user is loaded with 420kg.
Materials
Post are made of Ø101.6 x 2mm , pre-galvanized carbon steel and powder coated, a great protection to all conditions.
Bars intended as grips during exercises are made of hot-dip galvanized s teel Ø38 m m , a great diameter for a good grip and to support the wrist.
The connectors are made of die-cast aluminum, specially alloyed for the outdoor environm ents and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.
See product sheet for further deatils.
Colours
Available in:
Midnight Blue, Charcoal
Warranty
Galvanised Structural Parts Lifetime
Post 10 Years
Connectors 10 Years
SBR 2 Years
Panels Lifetime
Rosta Element 2 Years
Bearing 5 Years
Spare parts guaranteed 10 Years
Floors (decks) 10 Years
