Code: FSW22200

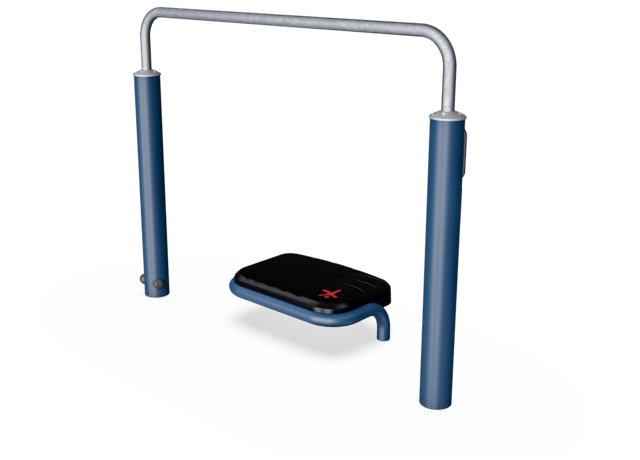

The step is probably the most simple and versatile device available. The step-up exercise is an essential exercise that can be used for both strength, posture control and cardio exercise. For accommodating the balance and safety challenges for elderly people, the step is complimented with a support rail.

Categories: , Brand: Age Group: , Themes:

Technical information

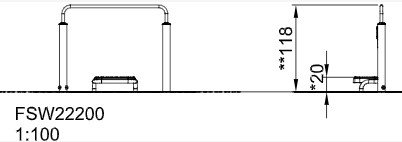

Dimensions LxWxH 151 x 44 x 120cm
Age Group 13+
Capacity 1 adult
Max. fall height 20 cm

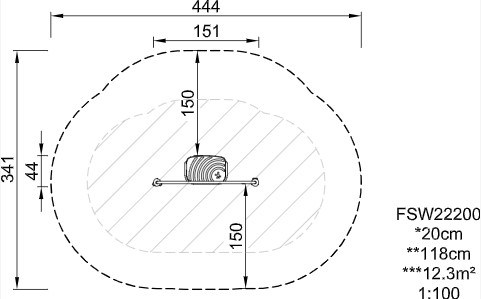

Safety surfacing area 12.3 m ²

All KOMPAN fitness products are designed according to the ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed as a static test by adding dynamic factors as well as safety factors to the specified load of 78 kg per user. A product intended for 1 user is loaded with 420kg.

2D & 3D DWG files


Product images


Product Documents



Post are made of Ø101.6 x 2m m , pre-galvanized carbon steel and powder coated, a great protection to all conditions.
Bars intended as grips during exercises are made of hot-dip galvanized s teel Ø38 m m , a great diameter for a good grip and to support the wrist.
The connectors are made of die-cast aluminum, specially alloyed for the outdoor environm ents and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.

See product sheet for further deatils.


Available in:

Midnight Blue, Charcoal


Galvanised Structural Parts Lifetime
Post 10 Years
Connectors 10 Years
SBR 2 Years
Panels Lifetime
Rosta Element 2 Years
Bearing 5 Years
Spare parts guaranteed 10 Years
Floors (decks) 10 Years
