Product Detail

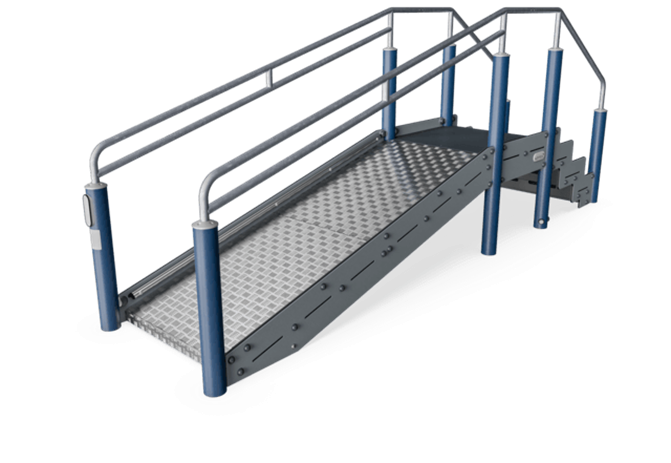

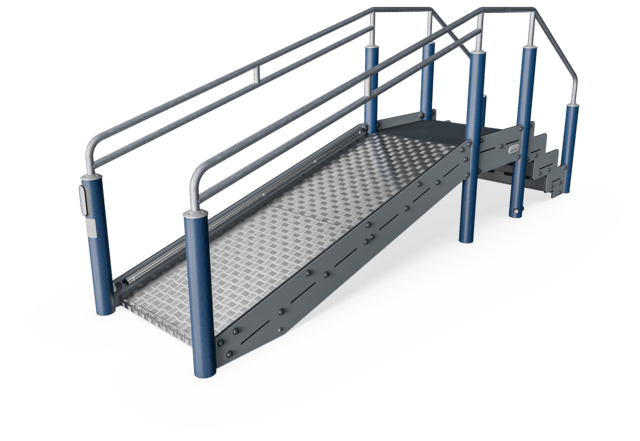

STAIRS & RAMP
Code: FSW22900
The stair and ramp resembles some common everyday obstacles. Walking on an inclining slope and overcoming stairs. The simplest use is just walking back and forth on the module, but with variations in the task, specific skills can be trained. For example focusing on balance by walking without hand support or focusing on strength and mobility by deliberately using as long steps a possible. The stairs are available in two different versions: normal stairs or steep stairs. These can also be used for simple effective exercises like step-ups and lunges. The ability to walk safely on an inclining or declining slope is very important for the elderly. If body posture is not correctly aligned with the surface, the risk of falling is increased. With support from the rails, this skill can be trained in a safe environment.
Technical information

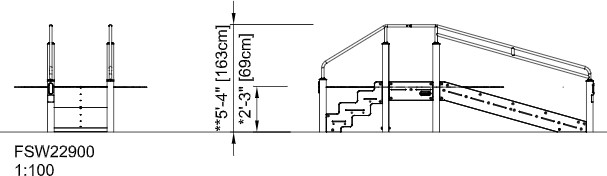

Dimensions LxWxH 101 x 415 x 163cm
Age Group 13+
Capacity 2 adults
Max. fall height 69cm
Safety surfacing area 265m²
All KOMPAN fitness products are designed according to the ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed as a static test by adding dynamic factors as well as safety factors to the specified load of 78 kg per user. A product intended for 1 user is loaded with 420kg.
Materials
Post are made of Ø101.6 x 2mm , pre-galvanized carbon steel and powder coated, a great protection to all conditions.
Bars intended as grips during exercises are made of hot-dip galvanized s teel Ø38 m m , a great diameter for a good grip and to support the wrist.
The connectors are made of die-cast aluminum, specially alloyed for the outdoor environm ents and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.
See product sheet for further deatils.
Colours
Available in:
Midnight Blue, Charcoal
Warranty
Galvanised Structural Parts Lifetime
Post 10 Years
Connectors 10 Years
SBR 2 Years
Panels Lifetime
Rosta Element 2 Years
Bearing 5 Years
Spare parts guaranteed 10 Years
Floors (decks) 10 Years
